Compactors SV208
Overview:
The CASE SV208 single drum vibratory compactor is reliable, durable and easy to operate. The high-traction hydrostatic drive system has the rear wheels synchronized with the drum, providing excellent gradeability. Operator-friendly controls, an adjustable seat, and a large canopy make long work days in the SV208 more p... + Read More
Features

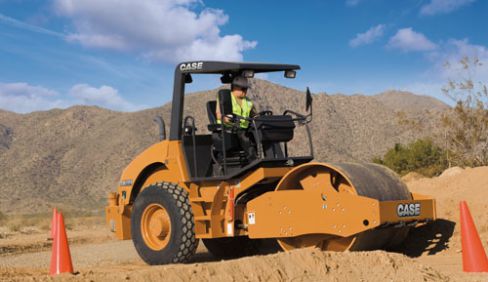

CASE SV208 Compactor
PRODUCTIVITY
Excellent gradeability is provided through the high-traction, hydrostatic drive system. Effectiveness on uneven or difficult terrain is enhanced by an articulation joint that oscillates as well.
FUEL EFFICIENCY
Meet current environmental standards and consume less fuel with Tier III-certified engines.
COMFORT/VISIBILITY
Comfort is increased with an ergonomic work environment and swivel seat that adjusts 50 degrees. Rear visibility is maximized with the sloping rear deck.
SERVICEABILITY
This machine offers outstanding service access with an easy-lift engine cover and operator platform.
Specifications
| ENGINE | |
| Emission Rating | Tier 3 |
| Engine manufacturer | Cummins |
| Engine model | QSB 3.3 C99 |
| Engine rated power - hp (kW) | 99 (73.8) |
| Displacement - Inches³ (ltr) | 201 (3.3) |
| Rated speed - rpm | 2200 |
| Amplitude - stage 1 - inches (mm) | 0.034 (0.86) |
| Amplitude - stage 2 - inches (mm) | 0.069 (1.7) |
| Frequency - stage 1 - Hz | 30 |
| Frequency - stage 2 - Hz | 41 |
| Centrifugal force - stage 1 - lbf (kN) | 29215 (130) |
| Centrifugal force - stage 2 - lbf (kN) | 32586 (145) |
| DIMENSIONS | |
| Overall length - inches (mm) | 205 (5200) |
| Overall width - inches (mm) | 67.7 (1700) |
| Height over ROPS - inches (mm) | 113 (2870) |
| Curb clearance - inches (mm) | 13.8 (350) |
| Steering angle - ± ° | 36 |
| Turn radius - inside - inches (mm) | 122.4 (3090) |
| Turn radius - outside - inches (mm) | 183.6 (4680) |
| Drum width - inches (mm) | 66 (1680) |
| WEIGHTS | |
| Operating weight - lbs (kg) | 15830 (7180) |
