Compactors SV210
Overview:
From highway construction to parking lots and landfills, the CASE SV210 single drum vibratory compactor offers high centrifugal forces combined with optimized frequencies and dual amplitudes to ensure maximum productivity. The luxurious cab provides two-side access to the platform, excellent sight lines to the work are... + Read More
Features

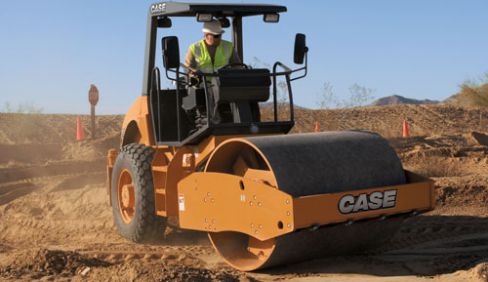

CASE SV210 Compactor
PRODUCTIVITY
Excellent gradeability is provided through the high-traction, hydrostatic drive system. Effectiveness on uneven or difficult terrain is enhanced by an articulation joint that oscillates as well.
FUEL EFFICIENCY
Meet current environmental standards and consume less fuel with Tier III-certified engines.
COMFORT/VISIBILITY
Comfort is increased with an ergonomic work environment and swivel seat that adjusts 50 degrees. Rear visibility is maximized with the sloping rear deck.
SERVICEABILITY
This machine offers outstanding service access with an easy-lift engine cover and operator platform.
Specifications
| ENGINE | |
| Emission Rating | Tier 3 |
| Engine manufacturer | Cummins |
| Engine model | QSB 3.3 C99 |
| Engine rated power - hp (kW) | 99 (73.8) |
| Rated speed - rpm | 2200 |
| Displacement - Inches³ (ltr) | 201 (3.3) |
| Amplitude - stage 1 - inches (mm) | 0.036 (0.91) |
| Amplitude - stage 2 - inches (mm) | 0.073 (1.9) |
| Frequency - stage 1 - Hz | 41 |
| Frequency - stage 2 - Hz | 30 |
| Centrifugal force - stage 1 - lbf (kN) | 32586 (145) |
| Centrifugal force - stage 2 - lbf (kN) | 35957 (160) |
| DIMENSIONS | |
| Overall length - inches (mm) | 205 (5200) |
| Overall width - inches (mm) | 67.7 (1700) |
| Height over ROPS - inches (mm) | 113 (2870) |
| Curb clearance - inches (mm) | 12.8 (325) |
| Steering angle - ± ° | 36 |
| Turn radius - inside - inches (mm) | 122.4 (3090) |
| Turn radius - outside - inches (mm) | 183.6 (4680) |
| Drum width - inches (mm) | 66 (1680) |
| WEIGHTS | |
| Operating weight - lbs (kg) | 19538 (8862) |
