Compactors SV212
Overview:
A lower center of gravity allows the CASE SV212 soil compactor to work across steeper slopes than other models in its class. A sloping rear deck gives you excellent rear visibility, further enhanced by the seat that swivels 50 degrees. The SV series offers two amplitude settings, resulting in the highest centrifugal fo... + Read More
Features

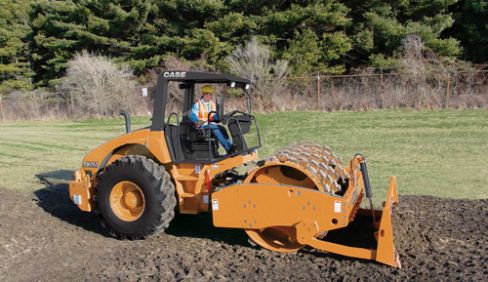

CASE SV212 Compactor
PRODUCTIVITY
Excellent gradeability is provided through the high-traction, hydrostatic drive system. Effectiveness on uneven or difficult terrain is enhanced by an articulation joint that oscillates as well.
FUEL EFFICIENCY
Meet current environmental standards and consume less fuel with Tier III-certified engines.
COMFORT/VISIBILITY
Comfort is increased with an ergonomic work environment and swivel seat that adjusts 50 degrees. Rear visibility is maximized with the sloping rear deck.
SERVICEABILITY
This machine offers outstanding service access with an easy-lift engine cover and operator platform.
Specifications
| ENGINE | |
| Emission Rating | Tier 3 |
| Engine manufacturer | Cummins |
| Engine model | QSB 4.5 |
| Engine rated power - hp (kW) | 148 (110) |
| Rated speed - rpm | 2200 |
| Displacement - Inches³ (ltr) | 275 (4.5) |
| Amplitude - stage 1 - inches (mm) | 0.045 (1.15) |
| Amplitude - stage 2 - inches (mm) | 0.073 (1.85) |
| Frequency - stage 1 - Hz | 32 |
| Frequency - stage 2 - Hz | 35 |
| Centrifugal force - stage 1 - lbf (kN) | 46310 (206) |
| Centrifugal force - stage 2 - lbf (kN) | 62250 (277) |
| DIMENSIONS | |
| Overall length - inches (mm) | 227 (5800) |
| Overall width - inches (mm) | 88.9 (2250) |
| Height over ROPS - inches (mm) | 121 (3070) |
| Curb clearance - inches (mm) | 17.3 (440) |
| Steering angle - ± ° | 36 |
| Turn radius - inside - inches (mm) | 120 (3050) |
| Turn radius - outside - inches (mm) | 211.2 (5370) |
| Drum width - inches (mm) | 84 (2130) |
| WEIGHTS | |
| Operating weight - lbs (kg) | 25530 (11580) |
