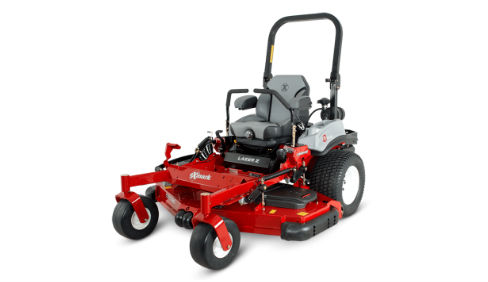

Mowers LZX940EKC72RT0 / NOT AVAILABLE

New Products / Exmark / Mowers / Rear Discharge Mowers / Lazer Z X-Series Rear Discharge / LZX940EKC72RT0

Double tap to zoom



Features

Patented RED Technology

Enabling communication and response between key systems on your mower with defined operation modes, system monitoring and clutch saver features.

A New Level of Comfort

Comfort increases productivity. That’s why we designed a new, ergonomically advanced seat system featuring our exclusive Iso-Mount Seat Isolation System.

Rear Discharge Deck

Available in 60 and 72 inch cutting widths, the rear discharge deck offers increased clipping discharge control, reduced noise, and the ability to trim on both sides of the cutting deck while keeping the operator clean.

Tool-less Belt Removal

Deck and hydro belt can be installed without using any tools.

Specifications

Equipment
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 30mm (1.18")diameter spindle shaft and splined blade driver.
Drive Tires 24 x 12.0-12, 4-ply Turf Master®
Cup Holder Standard
Tractor Frame Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
Steering Control Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Front Caster Tires 13 x 6.5-6 smooth tread, semi-pneumatic tires.
Parking Brake Lever-actuated disc brake.
Seat Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Electrical 12-volt battery with 25-amp alternator.
Power Components
Engine Brand Kohler®
Engine Model ECV940
Engine Displacement 999
Engine Series Command™ EFI
Engine Type Electronic Fuel Injected
Engine Speed 3,650 rpm
Air Filter Heavy-duty canister air filtration system
Fuel Type Gas EFI
Fuel Capacity 12-gallon (45.4-L), single fuel tank with single fill location.
Fuel Indicator Yes - electronic Sender
Drive Hydro-Drive
Drive Description Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 16 cc pumps and 17.1 cubic inch motors.
Speed Infinitely variable speed selection from 0-11.5 mph (18.5 kmph) forward, 0-6.0 mph (11.3 kmph) reverse
Carb Compliant No
Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.
PTO Engagement MagStop Electromagnetic 250-ft-lbs clutch with spot brake
Drive Wheel Release Allows unit movement without engine running.
Casters .50" thick caster yoke arms.
Decks
Width / Cutting Deck 72"
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Rear Discharge Deck. Rear-discharge standard with option to mulch.
Deck Construction 7-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge high strength alloy side skirt.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator's seat.
Blades 3 Blades at 24.50" Length
Dimensions
Width 84.9 in. (215.6 cm)
Length 87.2 in. (221.5cm)
Height 70 in. (177.8 cm)
Curb Weight 1259
