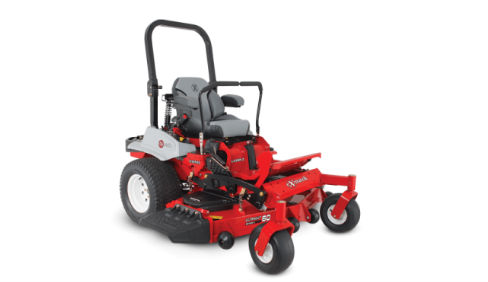

Mowers LZE801GKA604B1 / NOT AVAILABLE

New Products / Exmark / Mowers / Suspension Platform Mowers / LAZER Z E-SERIES SUSPENSION PLATFORM / LZE801GKA604B1

Double tap to zoom



Features

Tool-less Belt Removal

Deck and hydro belt can be installed without using any tools.

Adjustability of Platform

Platform design provides quick and easy 5-point adjustment without the use of tools, which delivers customized suspension response based on the operators personal preference.

Controlled Suspension

Trailing arms help to eliminate side to side movement of platform, making operator feel more in control.

Lazer Z Performance

Same quality of cut, durability and performance of a Lazer Z but with added operator comfort.

New Level of Comfort

Comfort increases productivity. That’s why we designed a new, ergonomically advanced seat system featuring our exclusive Iso-Mount Seat Isolation System.

Specifications

Equipment
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Drive Tires 24 x 12-12, 4 ply Super Turf®
Cup Holder Standard
Tractor Frame Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
Steering Control Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Front Caster Tires 13 x 6.5-6, smooth-tread, semi-pneumatic.
Parking Brake Lever-actuated disc brake.
Seat Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Seat Isolation System for reduced vibration, to enhance ride of standard seat.
Electrical 12-volt battery with 15-amp alternator.
Power Components
Engine Brand Kawasaki®
Engine Model FX801V
Engine Displacement 852
Engine Series V-Twin
Engine Type Carbureted
Engine Speed 3,750 rpm
Air Filter Heavy-duty canister air filtration system
Fuel Type Gas Carbureted
Fuel Capacity 8-gallon (30.3-L) single fuel tank with single fill location.
Fuel Indicator Yes - electronic Sender
Drive Hydro-Drive
Drive Description Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors.
Speed Infinitely variable speed selection from 0-10.0 mph (16 kmph) forward, 0-6.0 mph (9.7 kmph) reverse.
Carb Compliant No
Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.
PTO Engagement MagStop electromagnetic 200-ft-lb clutch with spot brake
Drive Wheel Release Allows unit movement without engine running.
Casters .50" thick caster yoke arms.
Decks
Width / Cutting Deck 60"
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator's seat.
Blades 3 Blades at 20.50" Length
Dimensions
Width 72.8 in. (184.9 cm)
Length 83.1 in. (211.1 cm)
Height 70 in. (177.8 cm)
Curb Weight 1250
