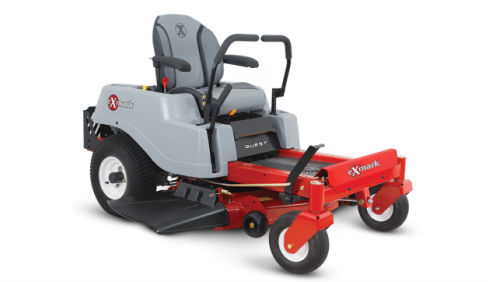

Mowers QTS708GEM42200 / NOT AVAILABLE

New Products / Exmark / Mowers / Zero-Turn Mowers / QUEST S-SERIES / QTS708GEM42200

Double tap to zoom



Features

Hour Meter Comes Standard

Improve maintenance records and track service intervals for longer life.

Welded and Fabricated Deck

Our deck system offers added strength and commercial durability.

Hitch Kit

Standard feature on S-Series. Provides mounting access to pull a cart or other accessories.

Standard Rear Engine Guard

Provides added production to the engine components from damage by brush and debris.

Simple Adjustment

With a single-point height adjust, it’s easy to adjust the Quest’s cutting deck.

Automatic Braking System

For added safety, whenever the Quest’s controls are positioned outward, its parking brake is applied automatically.

Exmark Engines

Built precisely to our specifications allowing us to control engine quality from start to finish. Super-quick and easy oil drain system, and an advanced air intake system specially designed to decrease dirt ingestion and increase performance.

Comfort Comes Standard

Its premium, ergonomically designed seat system provides a smooth, comfortable ride over uneven terrain.

Specifications

Equipment
Blade Spindles No maintenance, sealed and non-greasable spindles; 5.50"-diameter cutter housing with 0.67"-diameter spindle shaft.
Drive Tires 18 x 7.50-8, 2-ply Turf Tech TL
Cup Holder Standard
Tractor Frame Unibody, Riveted 10 ga. Steel
Steering Control Hydraulically dampened twin levers, adjustable both fore and aft. Levers are also adjustable to 2 height positions.
Front Caster Tires 11 x 4-5 ribbed tread, pneumatic
Parking Brake Automatic-actuated pawl brake.
Seat Commercial Grade High Back contoured foam padded with armrests. Hinged mounting, spring suspension. Adjustment: Fore and aft from Operators' Position.
Electrical 12-volt battery with 15-amp alternator.
Power Components
Engine Brand Exmark
Engine Model 708
Engine Displacement 708
Engine Series V-Twin
Engine Type Carbureted
Engine Speed 3,300 rpm
Air Filter Standard Engine Manufacturer's air filter
Fuel Type Gas Carbureted
Fuel Capacity High-capacity, 2.9-gallon (11.0-L), single fuel tank with single fill location.
Fuel Indicator Translucent Visual
Drive Hydro-Drive
Drive Description Two Hydro-Gear ZT2200 hydro static transmissions with no hoses, integrated cooling fans, integrated reservoir.
Speed Infinitely variable speed selection from 0-7 mph (11.3 km/h) forward. 0-3.4 mph (5.5 km/h) reverse.
Carb Compliant No
Deck Lift Standard; lever lift. Foot-assist lifts the deck to maneuver around obstacles.
Safety Package Operator Presence Controls (OPC) and drive system interlock.
ROPS None
PTO Engagement MagStop electromagnetic 80-ft-lbs clutch
Drive Wheel Release Allows unit movement without engine running.
Casters .25" thick caster yoke arms
Decks
Width / Cutting Deck 42"
Deck Style Floating Deck
Deck Style Description Exmark Series-2 fabricated and welded steel deck. Side discharge standard with the option to bag or mulch.
Deck Construction 10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments, adjustable from operator seat with standard foot operated assist.
Blades 2 Blades at 21.60" Length
Dimensions
Width 54.1 in. (137.4 cm)
Length 71.8 in. (182.4 cm)
Height 40.7 in. (103.4 cm)
Curb Weight 561
