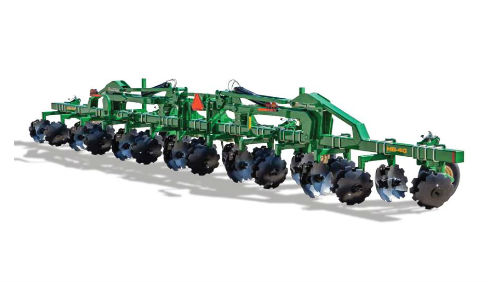

Hipper/Bedder HB40
Overview:
Hipper Bedder
The Hipper Bedder from Great Plains are built with a focus on innovation, functionality, and toughness.
The Hipper Bedder, a variation of the Lister Cultivator, is designed to work in the heavy soils of the Delta, creating beds with rolling blades rather than lister bottoms. Built on the Lister Cult... + Read More
Features
Multiple Row Unit Configurations
Choices on Lister Cultivators include short or long lister bodies, or short or long cultivator bodies with sweeps and optional barring-off discs. Depth coulters or depth tires are available on either configuration, and side shields can be added.
Depth-Gauging Coulter
Lister Cultivators utilize an open yoke gauge wheel design that places bracing where strength is needed but out of the way for trash flow. A steel depth gauge and positive lock ensure the set depth remains consistent.
3-Point Hitch
The 3-point lift frame extends the length of the center section, creating a fully trussed mainframe. Available in category 3N, 3, 4N, and 4 hitch configurations.
Stack-Fold Toolbar (LC40 & HB40)
Ideal for quick folding and transportation, with thicker mainframe walls for long-term durability. LC25 and HB25 models utilize a rigid frame design.
Hub Assembly
Heavy-duty 6-bolt cast hubs with large-diameter spindles and bearings.
Gauge-Wheel Adjustment Handle
Enables desired working depth of bedder to be adjusted easily.
Blade-Angle Adjustment
The blade-angle adjustment bolt on the Hipper Bedder is easily accessible between the blades for quick adjustments.
Blade Scraper
Removes debris on the blade to keep the blade functioning properly.
3-Point Hitch
The 3-point lift frame extends the length of the center section, creating a fully trussed mainframe. Available in category 3N, 3, 4N, and 4 hitch configurations.
Specifications
|
MODELS | HB40-1236 | HB40-1238 | HB40-1240 | HB40-1630 |
|---|---|---|---|---|
|
TYPE |
3-Point Mounted |
|||
|
ROW SPACING |
36" | 38" | 40" | 30" |
|
ROW COUNT |
12 Rows (13 Row Units) |
16 Rows (17 Row Units) | ||
| WEIGHT (APPROX. LBS) | 9,600-11,000 | 10,800-12,400 | ||
|
PTO H.P. REQ (MIN) |
250+ |
320+ | ||
|
DIMENSIONS | ||||
|
TILLAGE WIDTH |
41' |
|||
|
TRANSPORT WIDTH |
25' 9" |
24' 8" |
||
|
TRANSPORT HEIGHT |
14' 8" (with 8" of ground clearance) | |||
