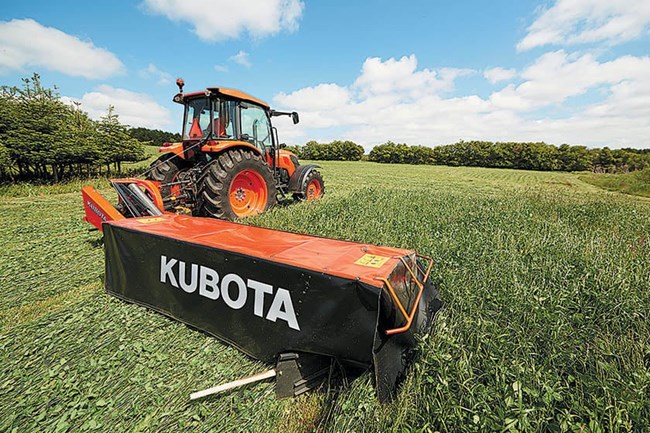

DM1024
Disc Mowers
Overview:
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Available Working Widths
- DM1017 – 5’6”
- DM1022 – 7’2”
- DM1024 – 7’9”
Spring Loaded Breakaway
When an obstacle is encountered, the DM1000 series swings backwards to protect the cutterbar; by reversing, the mower is reset into working position.
Fast Lift on Headlands
The mower is easily lifted via a hydraulic cylinder without activating the tractor’s 3-point linkage. This causes less wear on the tractor and the machine, as the PTO stays in the same position, minimizing vibrations in the transmission.
Vertical Transport Position
When in transport, the mowers are folded to a vertical position well behind the tractor. The center of gravity is close to the tractor, which ensures excellent weight distribution and transport stability.
Counter-Rotating Three-Bladed Discs
With three blades per disc Kubota mowers are constantly cutting. This means a third less load per blade; an even load on the drive; smoother power usage; and produces an even, cleanly cut stubble.
Specifications
| Cutting Width ft. (m) | Cutting Width ft. (m)7' 9" (2.4) | |
|---|---|---|
| Weight lbs. (kg) | Weight lbs. (kg)992 (450) | |
| Transport Width ft. (m) | Transport Width ft. (m)3' 9" (1.2) | |
| Hitch (CAT) | Hitch (CAT)2 | |
| Pin Hitch | Pin HitchNot Available | |
| PTO RPM | PTO RPM540 | |
| Minimum PTO Horsepower Required HP/KW | Minimum PTO Horsepower Required HP/KW46/34 | |
| Number of Disc and Knives | Number of Disc and Knives6/18 | |
| Remotes | Remotes1 | |
| Cutterbar Operating Angle | Cutterbar Operating Angle-45/+15 | |
| Stubble Height in. (mm) | Stubble Height in. (mm)0.78"-1.97" (20-50) | |
| BreakAway | BreakAwayStandard | |
| Non-Stop BreakAway | Non-Stop BreakAwayN/A | |
| Overrun Clutch | Overrun ClutchStandard | |
| Swath Board (RH/LH) | Swath Board (RH/LH)Standard/Optional | |
| Swath Rollers (RH/LH) | Swath Rollers (RH/LH)Optional (RH) | |
| High Skids +20/+40/+80 mm | High Skids +20/+40/+80 mmOptional | |
| Lighting Kit | Lighting KitOptional |
