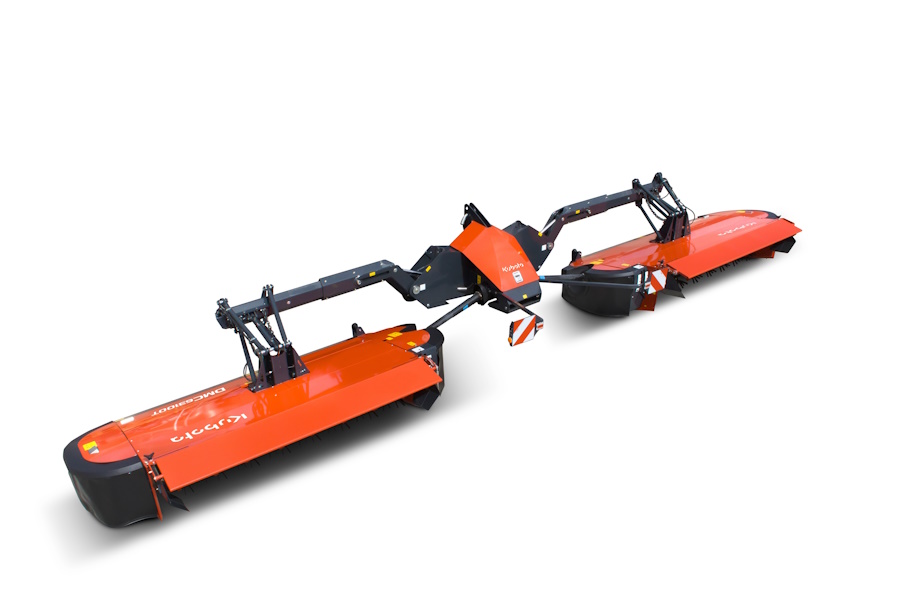

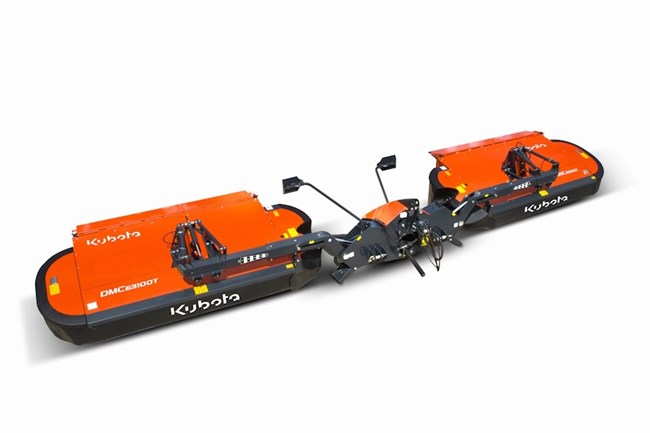

Kubota DMC63100T

QuattroLink Suspension

Designed like a racecar and developed for better tracking, fast speed and instant ground adaptation. Four arm pulled design for accurate tracking. This allows it to pivot 30 degrees up and down in a transverse direction. It can vertically move up 15.7” and down 11.8”.

Flexible suspension

This allows it to pivot 30 degrees up and down in a transverse direction. It can vertically move up 15.7 inches and down 11.8 inches. It also has a 28 inches of vertical working range.

Hydraulic setting of ground pressure

It also provides constant ground pressure through hydraulics from the seat of the tractor and an easy to read pressure gauge. Ground pressure is constant even when the mowing unit is moving up and down due to hydraulic ground pressure and  the geometry of QuattroLink. Constant ground pressure even when adjusting the hydraulic SideShift carrying VarioArm.

NonStop BreakAway

Integrated into the suspension system. When an object is encountered, the cutting unit will move up and back, automatically returning to its original working position so there is no need to stop meaning no time lost. Protection across full working width with no limiting factors.

400mm hydraulic adjustment of overlap

Headland Management

Automatic headland control that allows lifting and lowering with a predefined time or distance relay. To Minimize lifting and lowering time on headland, lifting height can be set electronically, depending on crop and swath size. The carrying arm can be lifted to 10 degrees by cylinder during headland turns resulting in minimum ground clearance of 20 inches.

ISOBUS Control

Automatic headland control. Adjustment of overlap. Set ground pressure of ground units. Side shift function control. Individual lift of mowing units. Optional hydraulic lift of side guards.

Dual adjustment of conditioner hood

Both front and rear end can be adjusted.

The flip over spreading hood allows for swath formation or wide spreading. Now tools are required making it fast and simple. Swath plates automatically expand when being slid inwards to support efficient and accurate swathing.

Vertical transport solution

Even weight distribution on both rear tires of the tractor. Telescoping frame arm is moved to the lowest overlap position to reach transport height. Outer side guard available with hydraulic folding mechanism. Sure-footed, integrated parking food for vertical storage requiring minimum space for storage.
