U10-5
Compact Excavators
Overview:

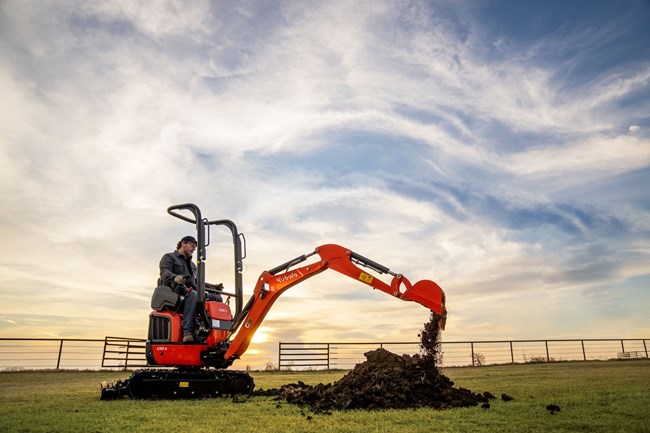

The Kubota U10-5 highlights a 10’ digging height and 5’ 11” digging depth, an incredible offering inside its ultra-compact frame. Kubota’s reputation for durability and operator comfort shine through in the U10-5 and you’ll also have access to an adjustable track range and standard two-speed for increased control. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Variable Width Undercarriage*
To enable passage through narrow spaces such as doorways and gates, the adjustable width track frame can be reduced by simply operating a single lever. Plus, changing the blade width is as easy as removing one pin by hand.
*Available on K008-3, K008-5, U10-5, KX018-4
Clean Running Kubota Tier 4 Engine
Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.
Two Speed Travel
All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.
Changeable Control Pattern
Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.
Specifications
| Engine Model | Engine ModelKubota D722-E4 | |
|---|---|---|
| Horsepower (gross) | Horsepower (gross)10.3 | |
| Displacement (cu. in.) | Displacement (cu. in.)43.8 | |
| Overall Length, ft (mm) | Overall Length, ft (mm)9ft 9in (2980) | |
| Overall Height, ft (mm) | Overall Height, ft (mm)7ft 5in (2260) | |
| Overall Width, ft (mm) | Overall Width, ft (mm)3ft 3in (990) / 2ft 6in (750) | |
| Min. Ground Clearance, in (mm) | Min. Ground Clearance, in (mm)5.5in (140) | |
| Crawler Length, ft (mm) | Crawler Length, ft (mm)4ft 5in (1340) | |
| Pump Capacity, GPM (LPM) | Pump Capacity, GPM (LPM)2.8 (10.5) x 2 | |
| Auxiliary Hydraulics Flow Rate, GPM (LPM) | Auxiliary Hydraulics Flow Rate, GPM (LPM)5.5 (21.0) | |
| Bucket Breakout Force, lbs (kgf) | Bucket Breakout Force, lbs (kgf)2337 (1060) | |
| Arm Breakout Force, lbs (kgf) | Arm Breakout Force, lbs (kgf)1214 (550.6) | |
| Traveling Speed: High, mph (kph) | Traveling Speed: High, mph (kph)2.5 (4.0) | |
| Traveling Speed: Low, mph (kph) | Traveling Speed: Low, mph (kph)1.2 (2.0) | |
| Ground Contact Pressure psi, kgf (cm2) | Ground Contact Pressure psi, kgf (cm2)4.2 (0.30) | |
| Blade Width, ft (mm) | Blade Width, ft (mm)3ft 3in / 2ft 6in (990 / 750) | |
| Blade Height, in (mm) | Blade Height, in (mm)7.9in (200) | |
| Hydraulic Oil Reservoir / System, gal (l) | Hydraulic Oil Reservoir / System, gal (l)3.3 / 4.5 (12.6 / 17.1) | |
| Fuel Reservoir, gal (l) | Fuel Reservoir, gal (l)3.2 (12.0) | |
| Operating Weight, lbs (kg) | Operating Weight, lbs (kg)2646 (1200) |
