U17
Compact Excavators
Overview:

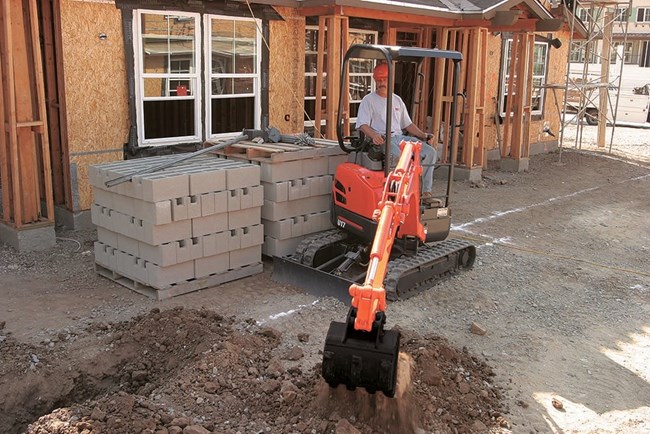

Tough job? Tight spaces? The Kubota U17 Compact Excavator is here to save the day. Standard two speed travel ensures you’re in total control of your excavator and a variable width undercarriage allows for maneuverability through narrow areas such as doors or gates. Rubber tracks make for a smoother ride and from your seat in the comfortable and spacious operator’s station, you’ll make ample use of the U17’s 16.1 horsepower rating. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Variable Width Undercarriage**
To enable passage through narrow spaces such as doorways and gates, the adjustable width track frame can reduce by simply operating a single lever. Plus, changing the blade width is as easy as removing one pin by hand.
**Available on U17
Auxiliary
- Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
- Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers
Clean Running Kubota Tier 4 Engine
Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.
Changeable Control Pattern
Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.
Comfort & Convenience
- A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
- Digital panel with easy access, simple settings and easy-to-read indicators and alerts
- Easy cab entry and exit
- Easy-open front slide window
- Wrist rest
- Cup holder
- Optional cab
Two Speed Travel
All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.
Serviceability
- Front pin bushings to help maximize durability
- Centralized swivel bearing lubrication
- Protected cylinder hoses
- Steel hood panels
- One-sided engine maintenance
- Wide hood openings for easy access to engine and other vital components
Specifications
| Engine Model | Engine ModelKubota D902-E4 | |
|---|---|---|
| Horsepower (gross) | Horsepower (gross)16.1 | |
| Displacement (cu. in.) | Displacement (cu. in.)54.8 | |
| Overall Length, ft (mm) | Overall Length, ft (mm)11 ft 7 in (3545) | |
| Overall Height, ft (mm) | Overall Height, ft (mm)7 ft 8 in (2340) | |
| Overall Width, ft (mm) | Overall Width, ft (mm)3 ft 3 in (990) / 4 ft 1 in (1240) | |
| Min. Ground Clearance, in (mm) | Min. Ground Clearance, in (mm)5.9in (150) | |
| Crawler Length, ft (mm) | Crawler Length, ft (mm)5 ft 2 in (1585) | |
| Pump Capacity, GPM (LPM) | Pump Capacity, GPM (LPM)4.57 (17.3) × 2 / 2.75 (10.4) × 1 | |
| Auxiliary Hydraulics Flow Rate, GPM (LPM) | Auxiliary Hydraulics Flow Rate, GPM (LPM)7.32 (27.7) | |
| Bucket Breakout Force, lbs (kgf) | Bucket Breakout Force, lbs (kgf)3417.2 (1550) | |
| Arm Breakout Force, lbs (kgf) | Arm Breakout Force, lbs (kgf)1918 (870) | |
| Traveling Speed: High, mph (kph) | Traveling Speed: High, mph (kph)1.4 (2.2) | |
| Traveling Speed: Low, mph (kph) | Traveling Speed: Low, mph (kph)2.6 (4.0) | |
| Ground Contact Pressure psi, kgf (cm2) | Ground Contact Pressure psi, kgf (cm2)3.8 (0.27) | |
| Blade Width, ft (mm) | Blade Width, ft (mm)4 ft 1 in (1240) / 3 ft 3 in (990) | |
| Blade Height, in (mm) | Blade Height, in (mm)10.3 in (260) | |
| Hydraulic Oil Reservoir / System, gal (l) | Hydraulic Oil Reservoir / System, gal (l)5.02 (19) | |
| Fuel Reservoir, gal (l) | Fuel Reservoir, gal (l)5.02 (19) | |
| Operating Weight, lbs (kg) | Operating Weight, lbs (kg)3703 (1680) |
