Features

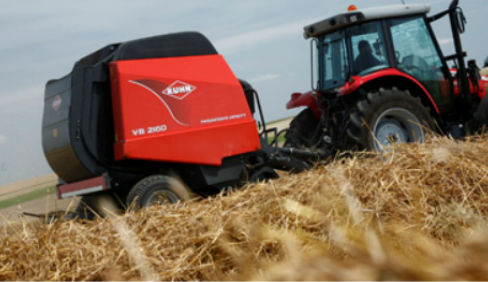

Kuhn VB 2160 variable chamber round balers produce high-quality bales under all crop conditions. The pre-chamber design allows for easy bale start in various crop conditions. In the main chamber, the Progressive Density system works to increase bale density as the bale continues to grow. This results in a very firm bale with a moderate core. The heavy-duty drive line is simple with only three main chains and has a split drive for the bale chamber and rotor drive. Bales can be wrapped with net and/or twine through an efficient tie cycle.
To better meet your operation’s specific needs, there are four different intake options available on the VB 2160 round baler. Select from an open throat intake design, an OptiFeed non-cutting rotor, or a 14- or 23-knife OptiCut integral rotor.
Specifications
Bale diameter minimum-maximum (cm) | 80-160 |
Bale width (cm) | 120 |
Pickup intake width (cm) | 210 or 230 |
Number of tine bars | 4 or 5 |
Baffle plate | Standard (optional with roller) |
Bale chamber density control | Progressive Density |
Binding | Standard double twine (optional net binding or combination) |
Bale formation | 5 belts + 3 chamber rollers |
Control system | AutoPlus or ISOBUS |
Maximum wheel size | 500/50-17 |
