FC 283 GII
Double tap to zoom

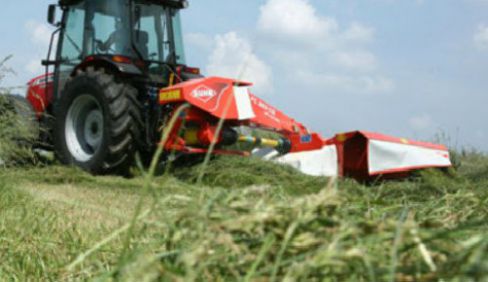

Mounted Disc Mower Conditioners FC 283 GII
Get a Quote »
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send to a friend »
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Rear 3-point hitch mounted - Conditioning rotor with nylon fingers, offering numerous adjustment possibilities - Non-Stop safety release activated by pivoting the mowing unit rearwards - Reinforced disc cutterbar - Central articulation and LIFT CONTROL® hydro-pneumatic suspension - Built-in hydraulic lift - Wide spreader as standard - Setting to transport position by pivoting rearwa
Specifications
| Working width (m) | 2.8 |
| Working width (inches) | 9'2" |
| Number of discs with protecting skids | 7 |
| PTO speed (rpm) | 1000 |
| Swath width (m) | 1 - 2.7 |
| Conditioning | With V-shaped nylon fingers. adjustable flap and comb |
| Conditioning rotor speed (rpm) | 615/888 |
| Swath width (feet) | 3'3" - 8'9" |
| Weight approx. (kg) | 980 |
| Weight (lb) | 2015 |
| Minimum power requirement for PTO (kW) | 60 |
| Minimum power requirement for PTO (hp) | 82 |
| Tractor hydraulic equipment | 1 x DA |
