Call UsKuhn FC 283 TG/RTG / NOT AVAILABLE

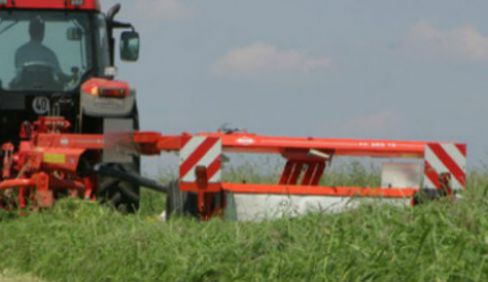

Side Pull Disc Mower Conditioner FC 283 TG/RTG
Features
GYRODINE swivel hitch - Compact and low profile cutter-bar - Conditioning with V-shaped nylon fingers or roller conditioner - Centralized suspension adjustment - Centralized adjustment of the cutting height with indicator - Reduced maintenance - Large wheels - Wide spreading (FC 283 TG).
Specifications
| Working width (m) | 2.8 |
| Working width (inches) | 9'2" |
| Transport width (m) | 2.99 |
| Transport width (feet) | 9'10" |
| Number of discs with protecting skids | 7 |
| PTO speed (rpm) | 540 (1000 possible by inverting gearboxes) |
| Swath width (m) | 1.2 - 1.8 |
| Conditioning | With V-shaped nylon fingers. adjustable plate. retractable comb or rollers |
| Conditioning rotor speed (rpm) | 615/1000 |
| Swath width (feet) | 3'11" - 5'11" |
| Weight approx. (kg) | 1465 (TG) - 1565 (RTG) |
| Weight (lb) | 3230 (TG) - 3450 (RTG) |
| Minimum power requirement for PTO (kW) | 51 |
| Minimum power requirement for PTO (hp) | 70 |
| Tractor hydraulic equipment | 1 double acting valve + 1 single acting valve |
