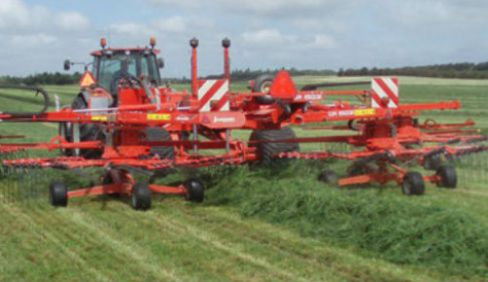

Kuhn GA 15031 / NOT AVAILABLE

New Products / Kuhn / Hay and Forage Tools / Rotary Rakes, Wheel Rakes & Mergers / Semi Mounted Rotary Rakes / GA 15031

Double tap to zoom



Features

The Kuhn Semi-Mounted Rotary Rakes GA 15031 has all features that can meet your expectations:

  • Very large work output
  • Adjustable working width
  • Hydraulic rotor drive
  • Very robust rotor arm guidance
  • 3D suspension
  • Large pivoting undercarriages
  • Hydraulic height adjustment
  • Rotor arm suspension
  • In cab control box
  • Very large ground clearance to cross over swaths
  • Suspended transport undercarriage
  • Large tyres
  • New rotor housing reinforced and with reduced maintenance

Specifications

Rake Type Center Delivery
Number of rotors 4
Working width (inches) 30'10" - 48'3"
Working width (m) 9.40 - 14.70
Minimum Windrow Width (feet) 4'11"
Maximum Windrow Width (feet) 8'2"
Minimum Windrow Width (cm) 150
Maximum Windrow Width (cm) 249
Swath delivery Central
Number of tine arms per rotor 13
Number of tines per arm 4
Drive Hydraulic
Gearboxes Hydraulic Masterdrive
Transport width (m) 3
Transport width (feet) 9'10"
Linkage 2-point
Minimum power requirement for PTO (kW) 90
Minimum power requirement for PTO (hp) 120
PTO speed (rpm) 1000
Tractor hydraulic equipment 1 DA + 1 SA
Weight (kg) 7 200
Weight (lb) 15 873
Rotor tyre type 18x8.50-8
