General Purpose Offset Mowers TB 181
Overview:

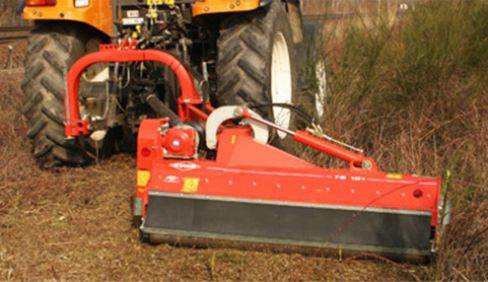

The Kuhn TB 181 offset landscape mower provides for efficient maintenance of roadsides, ditches, field edges, and banks. An oscillating 3-point hitch with a floating or variable pivot on the mowing head allows excellent terrain contouring for varying mowing conditions. The head pivot can move 65° down for mowing roadsi... + Read More
Features
Easily Adapt to Mowing Conditions
An oscillating 3-point hitch, with floating or variable pivot on the mowing head allows the mowing head to adapt to mowing conditions dictated by terrain.
Protection from Damage
A mechanical safety breakaway system protects the mower from inadvertent encounters with obstacles.
Roller Eliminates Ruts in Loose Soils
The 6” diameter rear roller provides optimal height control, eliminates ruts in loose soils and provides better clearance over irregular ground
Knives Ready to Handle Rocks and Stones
Universal hammer knives equipped on the TB mowers are specially designed for mowing grass in conditions with rocks.
Reduced Maintenance Requirements
Automatic belt tension system reduces maintenance requirements and prolongs life of belt set
Specifications
| Working width (m) | 1.8 |
| Transport width (m) | 2.01 |
| Diameter of roller (mm) | 140 |
| Working width (feet) | 5'9" |
| Diameter of roller (inches) | 6" |
| Minimum power requirement for PTO (kW) | 29 |
| Minimum power requirement for PTO (hp) | 60 |
| Maximum authorised tractor power (kW) | 58 |
| Maximum Authorised Tractor Power (hp) | 80 |
| PTO speed (rpm) | 540 |
| Number of universal knives | 48 |
| Number of hammer knives | 24 |
| Minimum tractor weight (lb) | 5071 |
| Minimum width of tractor wheel track (m) | 1.8 |
| Minimum width of tractor wheel track (feet) | 5'11" |
