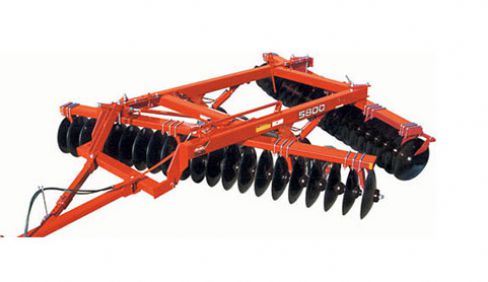

Offset Disc Harrow ODH 5800-12
Features
If your farming operation calls for a heavy-duty offset disc harrow, there's no better choice than a Kuhn Krause 5800 Series. Kuhn Krause’s 5800 Series offsets are renowned for their rugged dependability and heavy-duty construction. The new rocker shaft design utilizes hydraulic cylinders that act directly on each wheel arm, reducing frame stress and torsion. Massive main frame beams are 6" x 8" x 3/8" structural steel with gang beams of 4" x 10" material. The 5800 Series disc harrows put 497 to 650 pounds per foot of cut to work on your toughest tillage challenges, depending on the model and blade size. Gang angles are pin-stop adjustable from 16 degrees to 24 degrees.
Specifications
| Working width (m) | 3,7 |
| Working width (feet) | 12' 3" |
| Working width (m) | 3.7 |
| Working width (feet) | 12.25 |
| Number of discs | 31 |
| Number of discs | 31 |
| Disc diameter (cm) | 66 |
| Disc diameter (in) | 26" |
| Disc Spacing (cm) | 25,4 |
| Disc Spacing (in) | 10" |
| Number of wheels | 4 |
| Number of bearing arms | 8 |
| Transport width (m) | 4.1 |
| Transport width (feet) | 13' 6" |
| Number of sections | 1 |
| Frame type | Rigid |
| Weight (kg) | 3511 |
| Weight (lb) | 7741 |
| Tractor Power (kW) | between 63 and 90 |
| Tractor Power (hp) | between 84 and 120 |
| Maximum authorised tractor power (kW) | 89.4 |
| Maximum Authorised Tractor Power (hp) | 120 |
