Call UsKuhn TDH 8300-31 / NOT AVAILABLE

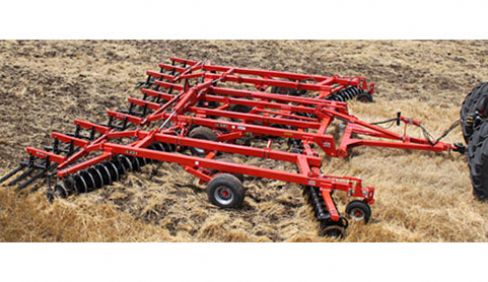

Tandem Disc Harrow: Primary Tillage TDH 8300-31
Features
Designed for the toughest Bt corn residue and deep penetration in tough soils, the Kuhn Krause 8300 Rock-Flex® Disc Harrow is offered in sizes 19' - 37'. Residue Razor® disc blades, aggressive gang angles and a significant weight increase over all-purpose tandems means the 8300 Series delivers better residue cutting and mixing. Choose from 9" front and 10" rear blade spacing for small grains/dry land use or 10" front and rear blade spacing for high yielding corn residue.
Specifications
| Working width (m) | 9,4 |
| Working width (feet) | 30' 11" |
| Working width (m) | 6 |
| Working width (feet) | 19.83 |
| Number of discs | 52 |
| Number of discs | between 76 and 80 |
| Disc diameter (cm) | between 61 and 66 |
| Disc diameter (in) | 24" or 26" |
| Disc Spacing (cm) | between 22,9 and 25,4 |
| Disc Spacing (in) | 9" or 10" |
| Number of wheels | 8 |
| Number of bearing arms | between 22 and 26 |
| Transport width (m) | 5.2 |
| Transport width (feet) | 17' |
| Transport Height (m) | 4.2 |
| Transport Height (feet) | 13' 10" |
| Number of sections | 3 |
| Frame type | Folding |
| Weight (kg) | between 8130 and 8602 |
| Weight (lb) | between 17925 and 18966 |
| Tractor Power (kW) | between 184 and 230 |
| Tractor Power (hp) | between 248 and 310 |
| Maximum authorised tractor power (kW) | 230 |
| Maximum Authorised Tractor Power (hp) | 310 |
