Call UsKuhn DOMINATOR 4850-12 / NOT AVAILABLE

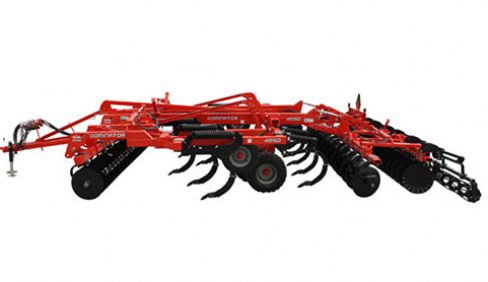

Combo Discs / Shanks DOMINATOR 4850-12
Features
The DOMINATOR Primary Tillage System is changing fall tillage. This exciting new concept eliminates stalk shredding and extra seedbed preparation trips. By managing residue in the fall and leaving a more level fall seed bed condition, the DOMINATOR sets the stage for fast efficient spring seedbed trips and maximum yields.
Specifications
| Working width (m) | 3,2 |
| Working width (feet) | 10' 6" |
| Number of coulters | 15 |
| Coulter size (cm) | 63.5 |
| Coulter size (in) | 25" |
| Number of wheels | 4 |
| Number of Shanks | 7 |
| Shanks spacing (cm) | 45.7 |
| Shanks spacing (in) | 18" |
| Number of Subsoil Shanks | 3 |
| Number of Chisel Shanks | 4 |
| Transport width (m) | 4.2 |
| Transport width (feet) | 13' 10" |
| Transport Height (m) | 1.9 |
| Transport Height (feet) | 6' 6" |
| Number of sections | 1 |
| Frame type | Rigid |
| Weight (kg) | 5361 |
| Weight (lb) | 11821 |
| Minimum working depth (cm) | 20.3 |
| Maximum working depth (cm) | 40.6 |
| Working depth (min.) (inches) | 8" |
| Working depth (max.) (inches) | 16" |
| Tractor Power (kW) | between 149 and 261 |
| Tractor Power (hp) | between 200 and 350 |
