Single-Auger Vertical TMR Mixers 5135
Overview:

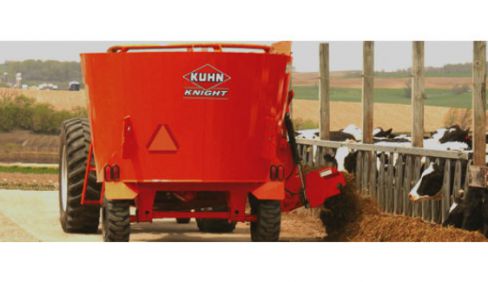

The Kuhn Knight 5135 is a single-auger vertical mixer designed for small cow/calf, backgrounder and dairy operations that process and mix high percentages of hay. This smaller-capacity mixer can process rations containing up to 100% hay to get more roughage in the ration. The Vertical Maxx can mix a wide variety of fee... + Read More
Features
Simple, Economical, Single-Auger Design
The free-standing, single-auger design allows for quick and efficient hay processing as well as fast, thorough cleanout.
Large Right–side Door
The tall door height allows for superior feed flow and less binding in high-hay rations, especially when discharging 100% dry, grassy, round-bale hay.
Proven, Dependable, Low-Maintenance Drive
The quiet planetary drive has very few moving parts and is specifically designed to meet the most difficult mixing conditions.
Replaceable Hay-Cutting Knives
Several types of two-position hay-cutting knives are available for different applications. Knives may be set out to improve processing or set in to reduce horsepower.
Specifications
| Capacity - no extensions (m3) | 9.9 |
| Capacity - no extensions (cu.ft) | 350 |
| Number of augers | 1 |
| Overall height - no extensions (cm) | 257 |
| Overall height - no extensions (in) | 101 |
| Overall width - without options (cm) | 254 |
| Overall width - without options (in) | 100 |
| Tread width (cm) | 208 |
| Tread width (in) | 82 |
| Weight (kg) | 2586 |
| Weight (lb) | 5700 |
| Drive | Planetary |
| PTO speed (rpm) | 540 |
| Minimum power requirement for PTO (kW) | 56 |
| Minimum power requirement for PTO (hp) | 75 |
| Maximum load (kg) | 3969 |
| Maximum load (lb) | 8750 |
| Door opening (h x w, cm) | 91x99 |
| Door opening (h x w, in) | 36x39 |
| Auger Diameters (cm) | 218 |
| Auger Diameters (in) | 86 |
