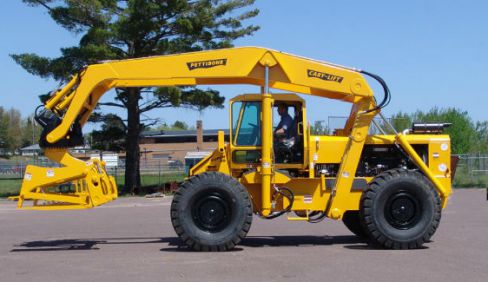

Pettibone Cary-Lift 204 RPH / NOT AVAILABLE

New Products / Pettibone / Telehandlers / Cary-Lift / Cary-Lift 204 RPH

Double tap to zoom



Features

Engine

The 204 is powered by a 190-HP Cummins QSB6.7 Tier 3 diesel engine with full electronic control and protection. The unit includes an engine-driven fan cooling package and engine block heater as standard equipment.

Joystick Control

Dual joysticks provides intuitive control of the hydraulics for lifting, tilting and reaching simultaneously.

Overhead Lift Arm

The unique overhead lift arm design gives the operator full front visibility when lifting, placing or transporting loads. The arms are mounted behind the cab, rather than in front where they would obstruct the forward view.

Solid Frame

Unlike other forward-reaching, articulated loaders, the 204 has a heavy-duty, solid steel frame design that allows it to take full loads into sharp turns without sacrificing load capacity or stability.

Wheel Base

Wheel base of just 12 feet provides a tight turning radius of 21 feet, 6 inches.

Steering

Excellent maneuverability thanks to 4-wheel drive with 2-wheel, 4-wheel and crab hydraulic power steering modes.

Hydraulic Frame Sway

Hydraulic frame sway control and side shift stabilize loads by leveling the lifting frame when driving on uneven ground. The sway cylinder moves 7 degrees both right and left of center.

Reach

The 204 is capable of reaching the forks out an extra 4 feet without having to reposition the machine. It offers a maximum lift height of 14 feet.

Fuel Tank

70-gallon (265 L) fuel tank capacity allows for longer operating intervals.

Operator Cab

A sliding door offers quick access to the comfortable cab, which includes a tilt/telescoping steering column and swiveling, adjustable suspension seat with padded armrests and lumbar support.

Windows

Large tinted safety glass windows contribute to better visibility.

Specifications

Dimensions
Overall Height *
Fork Length *
Ground Clearance 21.5" (55 cm)
Wheel Base 12' (366 cm)
Overall Length *
Overall Width 10' 6" (320 cm)
Total Operating Weight *
Engine
Model/Power 190 HP (142 kW) Cummins QSB6.7
Fuel Tank 70 gal. (265 L)
Fan Engine driven
Cooling Package CAC, radiator and transmission
Heating Engine block heater
Hydraulics
System Load-sensing hydraulic
Filter Hydraulic return oil filtration (10 micron)
Tank 75 gal. (284 L)
Sway Cylinder 7° both right and left of center
Performance
Max Load Capacity (Retracted) *
Max Load Capacity (Extended) *
Maximum Lift Height *
Below Grade Reach *
Maximum Reach from Tires *
Maximum Travel Speed 2.5 mph (4.0 km/h) 1st gear
4.8 mph (7.7 km/h) 2nd gear
9.6 mph (15.5 km/h) 3rd gear
19.1 mph (30.7 km/h) 4th gear
Turning Radius 21' 6" (655 cm) 4-wheel steer
Transmission Funk DF 150, 4-speed Powershift
Funk DF 3R2A torque converter
Axles AxleTech planetary front & rear; 4-wheel drive
Steering Hydraulic power steering with 2 wheel, 4 wheel and crab steering
Service Brakes 4-wheel outboard dry hydraulic disc
Parking Brake Spring applied hydraulic release
Tires 23.5 x 25, 24 ply interchangeable
Lighting 2 headlights, 2 stop/taillights, 1 reverse light
