Call UsRhino DF18 (older model) / NOT AVAILABLE
Double tap to zoom

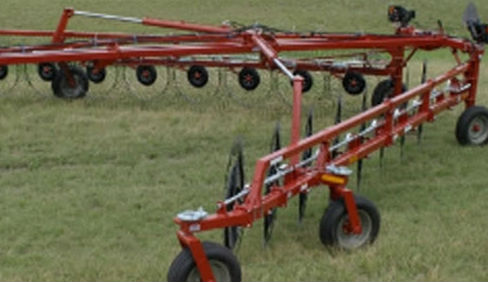

RDF - Revolution DF18 (older model)
Get a Quote »
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send to a friend »
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
- Spring steel fingers on rake wheels
- No hydraulics, no drivelines, no belts
- Operating speeds up to 14 MPH
- Narrow transport width of 10'
- Floating rake wheels to follow ground contour
- Adjustable to fit numerous raking applications
- Reinforced steel frame construction for extended use
- Optional rear hydraulic opening kit
- Optional rear tandem kit
- Optional single side wing kit
Specifications
| DF18 | |
|---|---|
| Number of Rake Wheels | 18 |
| Number of Tines Per Wheel | 40 |
| Manually Adjustable Windrow | 3' - 6' |
| Working Width | 33' 5" |
| Operating Speed (MPH) | 14-May |
| Horsepower Required (Min.) | 55 |
| Tire Size | 205-75/15 |
| Number of Tires | 6 |
| Transport Width | 8' 3" |
| Weight (lbs.) | 5,210 lbs. |
