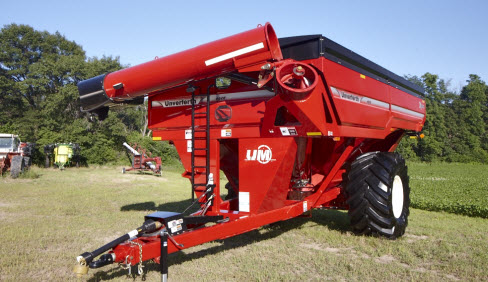

Unverferth 1015 (Prior Model) / NOT AVAILABLE

New Products / Unverferth / Grain Handling / X-TREME Front-Fold Auger Grain Carts / 1015 (Prior Model)

Double tap to zoom



Features

  • Capacities of 1,300-, 1,100-, and 1,000-plus bushels.
  • Dyna-Torque drive combines a 22" sump-mounted auger with leaned double flighting feeding into the 20" unloading auger for greater unloading efficiency than a conventional, full-length 22" auger
  • Patent-pending cushioned upper auger connection for smooth, efficient stress-free auger engagement
  • Folding auger features flex-drive coupler for optimum u-joint life
  • Upper and lower augers are synchronized for greater capacity, dependability and smooth operation
  • Computer-balancing virtually eliminates any vibration of the lower and upper augers for longer life
  • Ultra-Edge reinforced flighting provides 1/2" of steel at the outer edge for long-term performance
  • Heavy-duty gearbox features an extra-large 1 3/4" full-length output shaft for handling the toughest unloading chores, even wet corn
  • The oversized gears and bearing are encased in a durable aluminum gearbox housing, are static-rated at 330hp and dynamic-rated at 153hp for long-term, trouble-free use
  • Auger features hydraulic locking for a leak-free connection during unloading
  • P.T.O. features a cut-out clutch for superior driveline protection and automatic reset
  • Vortex downspout features a funnel design with 60° rotation for precisely controlling grain flow without splatter
  • Spout rotates downward for easy transport and storage within the width of the cart
  • Dual, auger-mounted, high-intensity halogen lights for easier nighttime unloading
  • Truss-frame design, structural tubular steel axles and 10-bolt gusseted hubs for smooth trailing, low maintenance
  • High-tensile, special-alloy steel spindles carry the heaviest loads with ease
  • Easy-to-use, gravity-flow is wheel-operated and can be locked open for easy cleanout
  • Standard transport safety features include L.E.D. tail and turn lights, side marker lighting, reflective striping and safety chain
  • Cast steel single-tang hitch with chamfered opening for reduced drawbar stress when traveling over uneven terrain
  • Silicone-sealed seams, durable primer undercoat and oven-baked enamel topcoat choice of tractor red or green to resist corrosion
  • Undercarriage options of high-flotation singles, or tracks, depending on model
  • Equalizer Track System (Available on the Model 1317)
    • Industry-leading 42" wide belt with a footprint of 60 sq/ft
    • Exclusive belt design with shallow tread belt pattern for greater flotation
    • Patent-pending pivot allowing bi-directional rotation of the track for better contact on uneven terrain
    • Hydraulic belt tensioning adjustment for easier track alignment

Specifications

Model Number 1015
Capacity* 1000+
Unload Speed (bu/min) 620
Approximate Empty Weight 13,920
Approximate Full Tongue Weight 5,900
Tire Size 900/60R32 BIAS LI176
